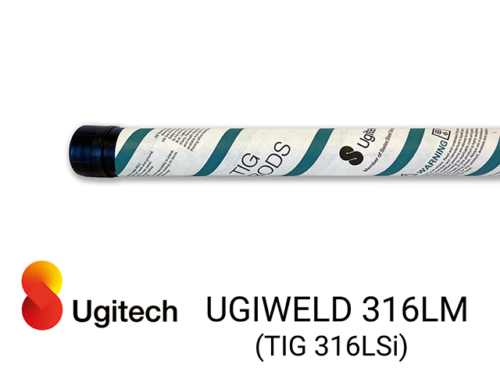

UGIWELD 316LM (TIG 316LSi)
TIG-rod solid wire for welding of corrosion resistant stainless materials.
AWS A5.9 ER316LSi
EN ISO 14343-A 19 12 3 LSi
General description:
UGIWELD 316LM (TIG 316LSi) is a solid TIG filler rod intended for welding of corrosion resistant austenitic materials, 316 types and similar. An increased silicon (Si) content enhances weld pool fluidity and wetting characteristics, resulting in improved bead appearance and reduced risk of lack of fusion. Purity is a critical factor when welding high‑alloyed materials. The weld zone shall be kept completely free from contamination to avoid defects and to preserve corrosion resistance. The interpass temperature shall not exceed 150 °C, and the heat input should be limited to a maximum of 2.0 kJ/mm to ensure proper weld metal properties and microstructure.
Chemical composition of welding wire:
| C | Si | Mn | Ni | Cr | Mo | Cu |
|---|---|---|---|---|---|---|
| Max 0,03 | 0,65 - 1,0 | 1,0 - 2,5 | 11,0 - 14,0 | 18,0 - 20,0 | 2,5 - 3,0 | Max 0,50 |
Packaging information:
1,0 mm: 1000mm x 5kg / 500mm x 2,5kg
1,2 mm: 1000mm x 5kg / 500mm x 2,5kg
1,6 mm: 1000mm x 5kg / 500mm x 2,5kg
2,0 mm: 1000mm x 5kg / 500mm x 2,5kg
2,4 mm: 1000mm x 5kg / 500mm x 2,5kg
3,2 mm: 1000mm x 5kg / 500mm x 2,5kg
4,0 mm: 1000mm x 5kg / 500mm x 2,5kg
Approvals:
DB, CE.
Reference/date:
UGIWELD 316LM (TIG 316LSi), English, 15.04.2026.
